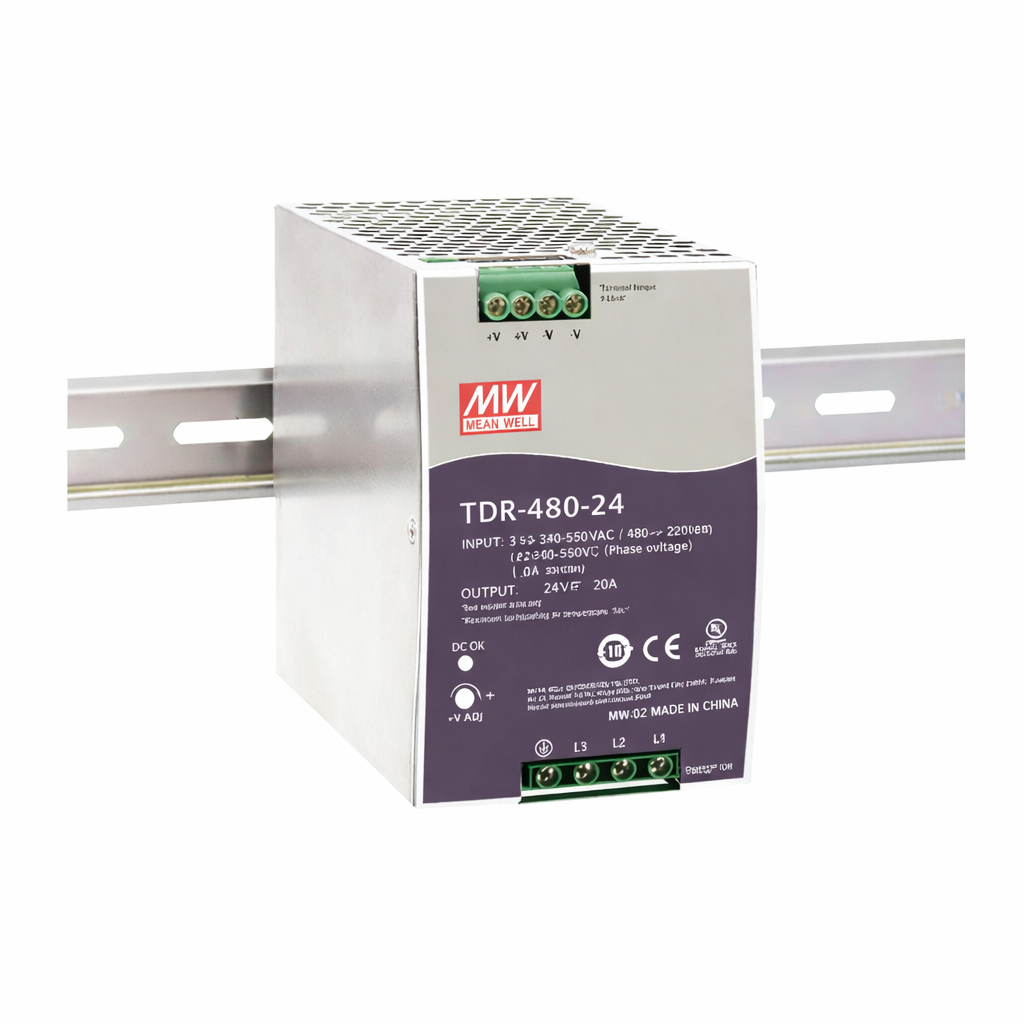

MEAN WELL TDR-480-24
480W 24V 20A Three Phase Industrial DIN Rail Power Supply with PFC
24 Volts @ 20 Amps
Specifications
- Output Power: 480 watts
- Input Voltage: 3-phase 340-550 VAC @ 47-63 Hz; 480-780 VDC
- Input Current @ max load: 0.85A
- Size: 3.37″W x 4.93″H x 5.06″D
- Weight: 3.58 lbs.
- Certification: UL, CB, CE
Features
- Three-phase 340-550VAC wide range input (Dual phase operation possible)
- Width only 85.5mm
- Built-in active PFC function compliance to EN61000-3-2
- High efficiency 92.5% and low power dissipation
- Protections: Short circuit, overload, over voltage, over temperature
- Cooling by free air convection
- Built-in constant current limiting circuit
- Can be installed on DIN rail TS-35/7.5 or 15
- UL508 (industrial control equipment) approved
- EN61000-6-2 (EN50082-2) industrial immunity level
- 2 year warranty
