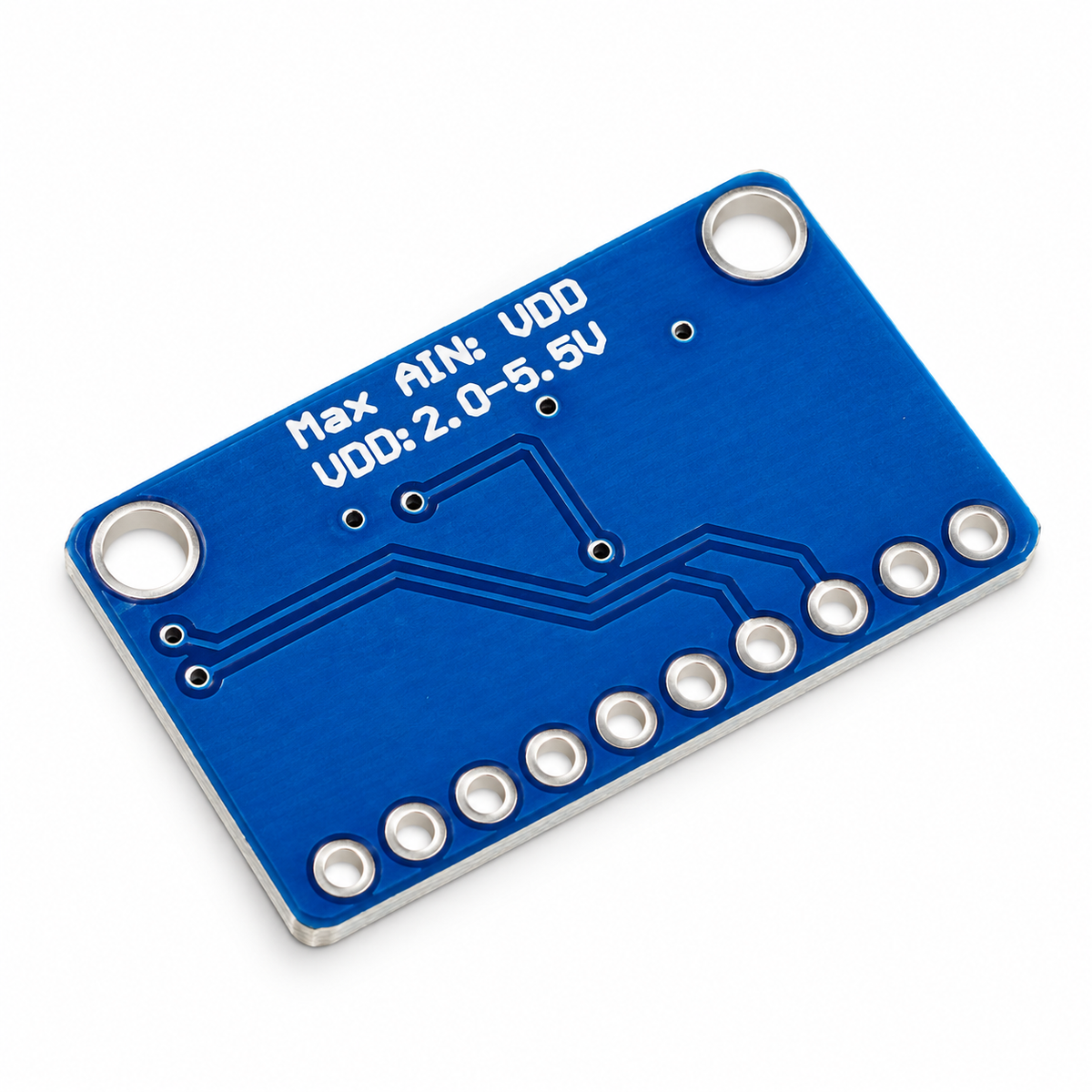

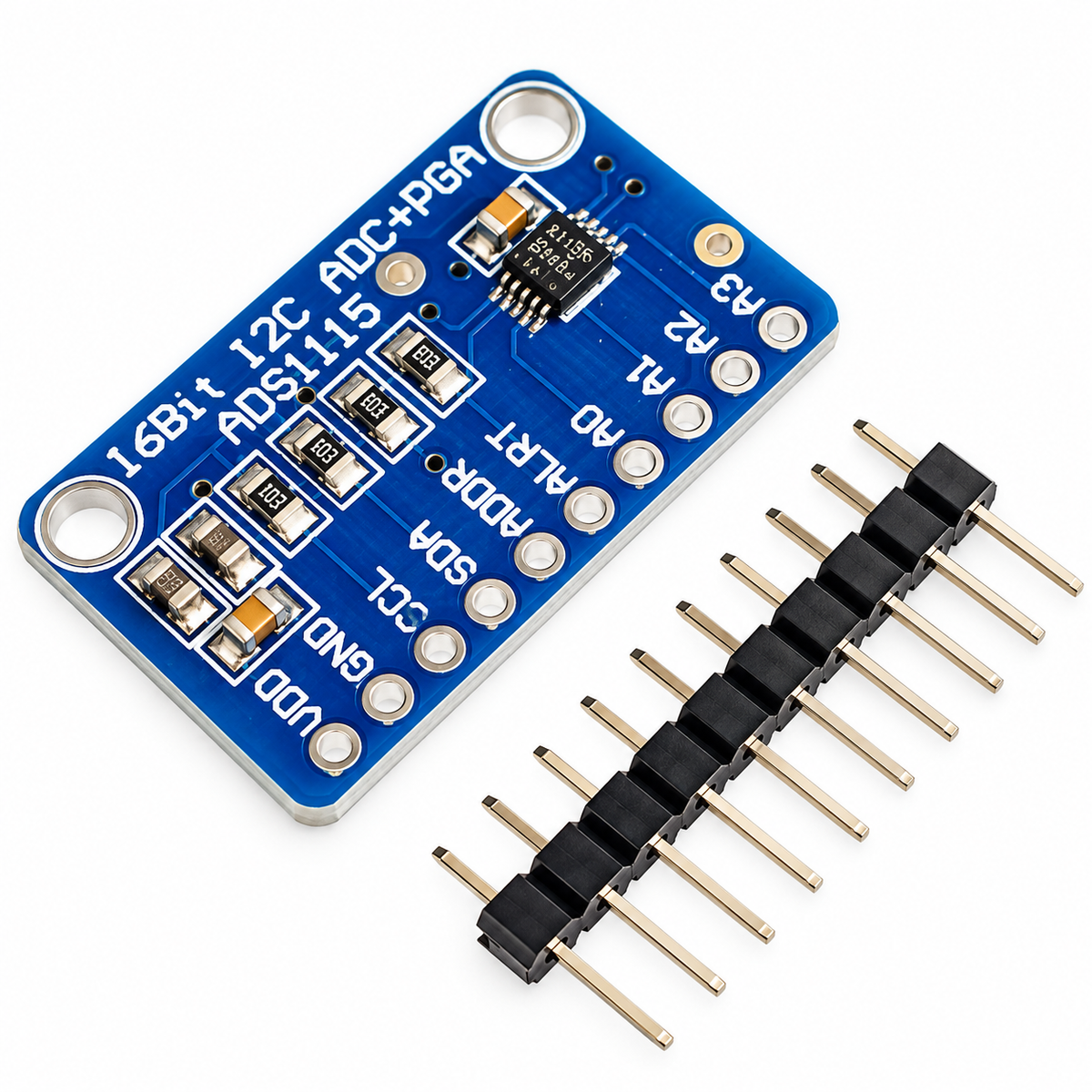

The CJMCU-ADS1115 16-Bit ADC Development Board Module is a high-precision analog-to-digital converter designed to measure analog signals and convert them into digital data for microcontroller-based applications. Built around the ADS1115 integrated circuit from Texas Instruments, this module provides 16-bit resolution, making it suitable for applications requiring accurate sensor measurements and data acquisition.

The module supports four single-ended analog inputs or two differential inputs and communicates with compatible microcontrollers through the I²C interface. Its integrated programmable gain amplifier (PGA) allows users to configure the input range for measuring different signal levels. With low power consumption and a compact design, it is ideal for Arduino, ESP32, Raspberry Pi, and other compatible development platforms.

Key Features

• ADC Resolution: 16-bit high-resolution conversion.
• Input Channels: Four single-ended or two differential inputs.
• Operating Voltage: 2.0V–5.5V DC.
• Communication Interface: I²C serial interface.
• Programmable Gain Amplifier: Configurable gain for different input signal ranges.
• Data Rate: Programmable from 8 to 860 samples per second.
• Low Power Consumption: Suitable for power-sensitive electronic applications.
• Compact Design: Convenient for prototyping and embedded system integration.
• Microcontroller Compatibility: Suitable for Arduino, ESP32, Raspberry Pi, and other compatible controllers.

Applications

• Precision analog signal measurement.
• Temperature and environmental sensor monitoring.
• Battery voltage monitoring.
• Industrial automation and process control.
• Data acquisition systems.
• Arduino and ESP32 projects.
• IoT devices and embedded electronics.
• Sensor interfacing and electronic prototyping.
