The FESTO MFH-5-1/4 (Part No. 6211) is an electrically actuated pneumatic solenoid valve designed to control compressed-air flow in industrial automation systems. Its 5/2-way, monostable configuration switches...
Availability: Low stock: 5 left
Couldn't load pickup availability
Free shipping and returns available on all orders!
We ship all US domestic orders within 5-10 business days
We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

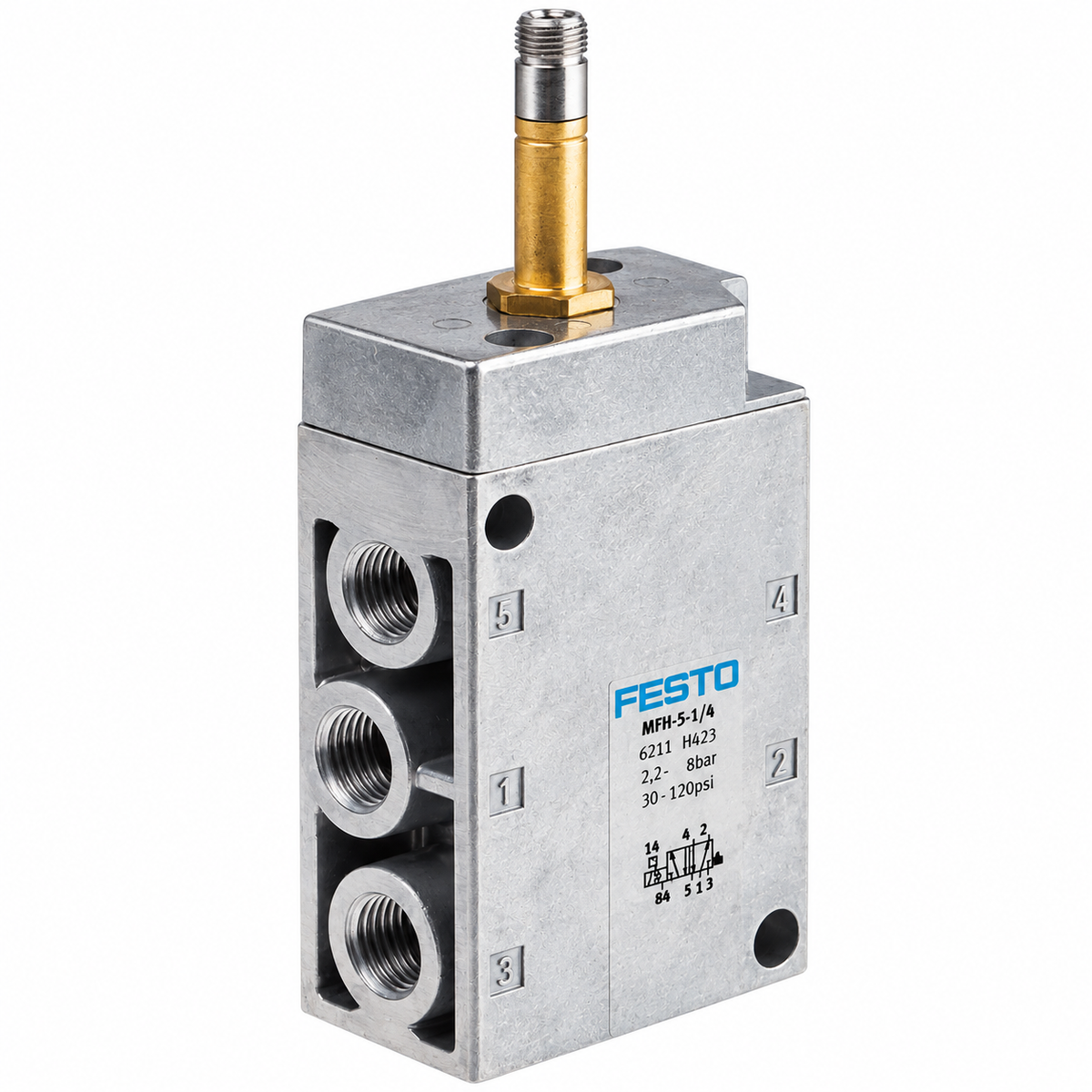

The FESTO MFH-5-1/4 (Part No. 6211) is an electrically actuated pneumatic solenoid valve designed to control compressed-air flow in industrial automation systems. Its 5/2-way, monostable configuration switches air between ports to control double-acting pneumatic cylinders and other pneumatic actuators.
The valve features mechanical spring return, a manual override, and G1/4 pneumatic connections. It is suitable for industrial pneumatic control applications requiring reliable switching performance.
Note: The solenoid coil and electrical connector/socket must be ordered separately.
Brand: FESTO
Model: MFH-5-1/4
Part Number: 6211
5/2-way, monostable valve function
Electrical actuation with mechanical spring return
Manual override with detent
Nominal flow rate: 1,000 L/min
G1/4 pneumatic working ports
Protection rating: IP65
Compact 30.5 mm construction width
Valve Type: Pneumatic solenoid valve
Operating Medium: Compressed air
Operating Pressure: 2.2–8 bar
Nominal Size: 7 mm
Port Connection: G1/4
Valve Function: 5/2-way, single solenoid
Reset Method: Mechanical spring
Mounting Position: Any
Solenoid Coil: Not included
Electrical Connector: Not included
Industrial automation systems
Pneumatic cylinder control
Manufacturing and assembly machinery
Packaging equipment
Machine tools
Automated production lines
