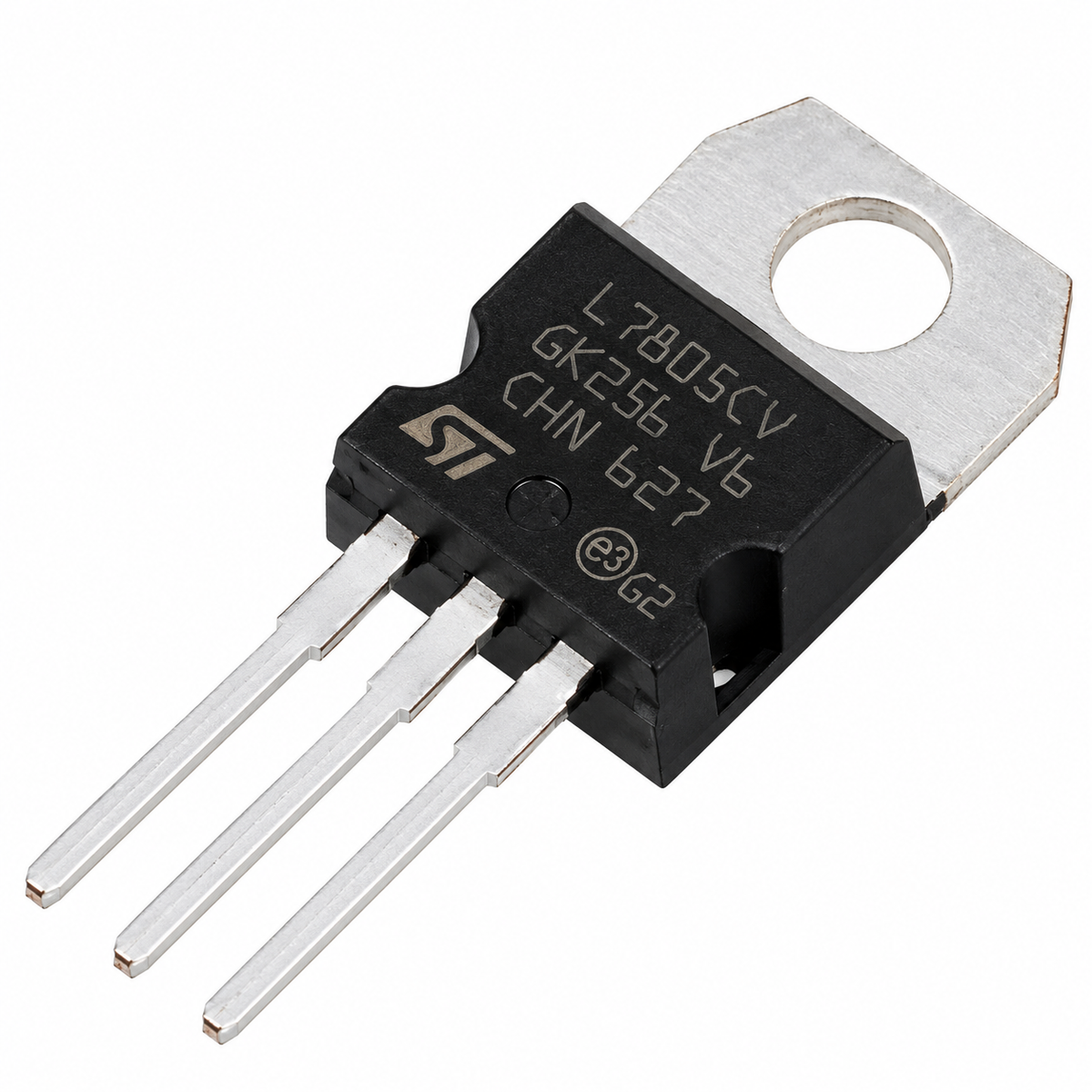

The L7805 Voltage Regulator IC is a three-terminal positive linear voltage regulator designed to provide a stable 5V DC output from a higher DC input voltage. It is widely used in electronic circuits that require a regulated 5V supply for microcontrollers, sensors, digital logic, and other electronic components.
Featuring built-in thermal overload protection, short-circuit protection, and safe operating area protection, the L7805 is suitable for power regulation in DIY electronics, embedded systems, and industrial control circuits. It is available in package variants such as TO-220, depending on the manufacturer and specific model.
Component: L7805 voltage regulator IC
Output Voltage: Fixed 5V DC
Output Type: Positive linear voltage regulator
Output Current: Up to 1.5A under suitable thermal conditions, depending on the variant
Input Voltage: Typically up to 35V DC; check the specific datasheet
Number of Pins: 3
Protection: Thermal shutdown, short-circuit protection, and safe operating area protection
Package: Commonly TO-220, with other variants available
Simple circuit design with minimal external components
Arduino and microcontroller power supplies
5V regulated power circuits
Digital logic and sensor circuits
Embedded electronic systems
DIY electronics and prototyping
Industrial control boards
Battery-powered electronic projects
