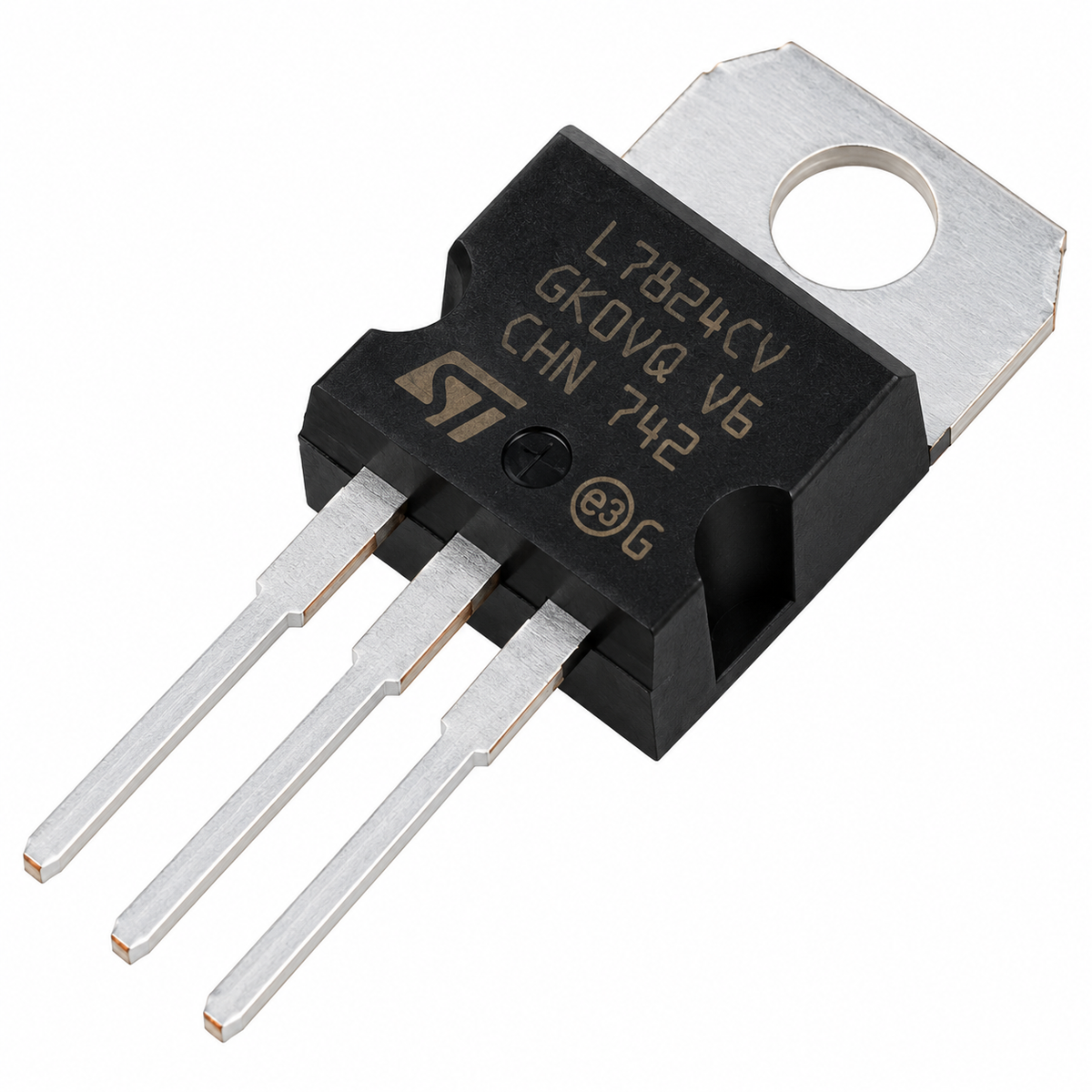

The L7824CV Voltage Regulator IC is a three-terminal positive linear voltage regulator designed to provide a stable 24V DC output from a higher DC input voltage. It is suitable for electronic circuits and equipment that require a regulated 24V power supply.
Featuring built-in thermal overload protection, short-circuit protection, and safe operating area protection, the L7824CV is commonly used in industrial control circuits, power supply boards, and electronic equipment. Its TO-220 package supports through-hole mounting and heatsink attachment when required.
Component Type: Positive linear voltage regulator IC
Model: L7824CV
Output Voltage: Fixed 24V DC
Output Current: Up to 1.5A under suitable thermal conditions
Number of Pins: 3
Package: TO-220
Input Voltage: Typically requires approximately 27V or higher for regulation; follow the specific datasheet
Protection: Thermal shutdown, short-circuit protection, and safe operating area protection
Simple three-terminal design
Suitable for regulated DC power supply circuits
24V regulated power supplies
Industrial control boards
Electronic instrumentation
Automation equipment
Control and interface circuits
DIY electronics and prototyping
Replacement and repair of electronic power boards
