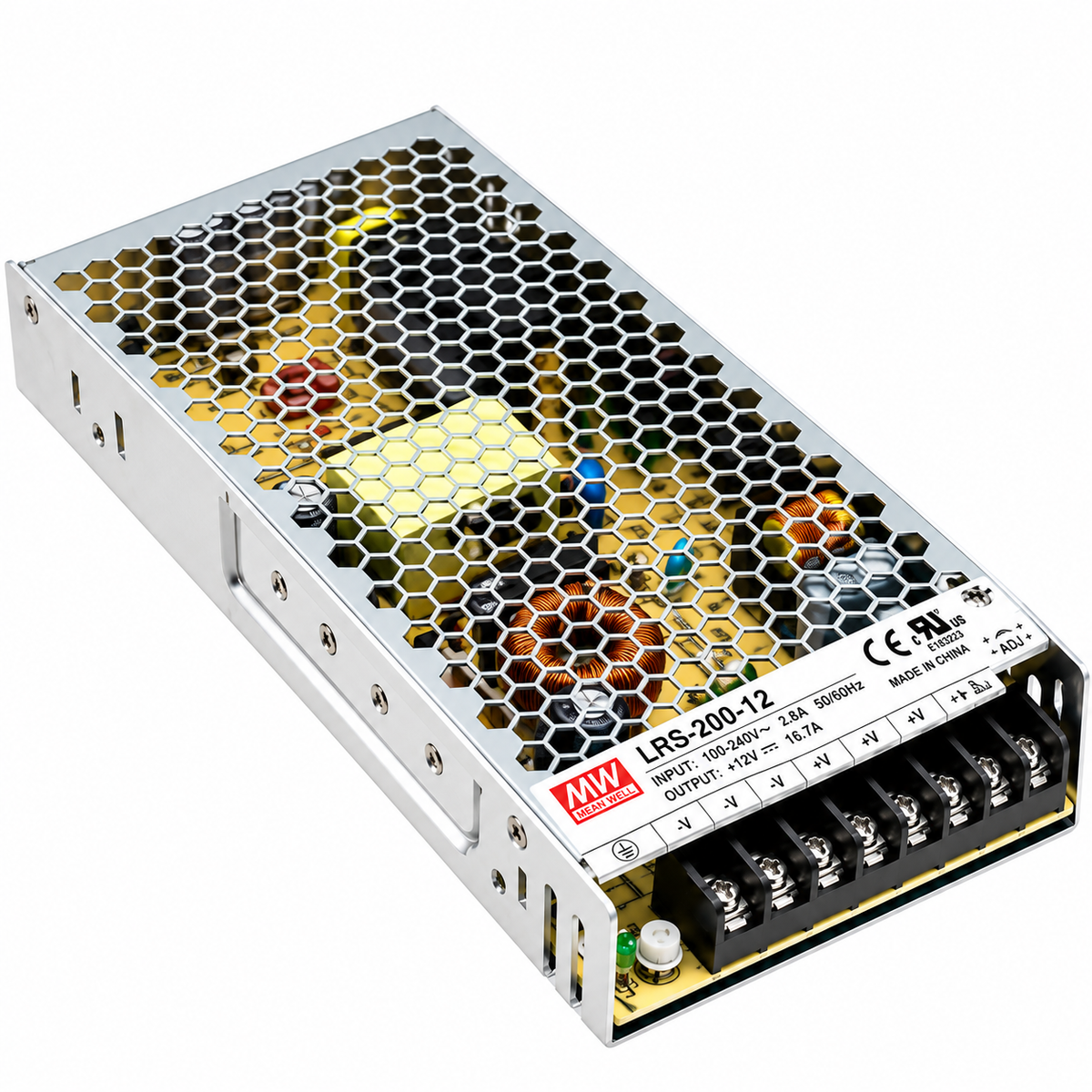

MEAN WELL LRS-200-12 12V 17A 204W Switching Power Supply.The MEAN WELL LRS-200-12 is a high-performance, enclosed AC-to-DC switching power supply designed to deliver a stable 12V DC output at up to 17A, with a rated power of 204W. Its low-profile, metal-mesh enclosure provides effective heat dissipation, making it suitable for industrial automation, electrical control panels, machinery, and electronic equipment. The power supply features a switch-selectable AC input range of 90–132V AC or 180–264V AC, along with natural convection cooling for quiet, fanless operation. Built-in protection against short circuits, overload, overvoltage, and overtemperature helps support reliable operation in demanding industrial environments.
Brand: MEAN WELL
Model: LRS-200-12
Output voltage: 12V DC
Rated output current: 17A
Rated output power: 204W
Input voltage: 90–132V AC / 180–264V AC, switch selectable
Output voltage adjustment: 10.2–13.8V DC
Enclosed metal-mesh housing
Low-profile 30mm design
Natural convection cooling
Short-circuit, overload, overvoltage, and overtemperature protection
Built-in LED power indicator
Typical efficiency: 87.5%
Industrial automation systems
Electrical control panels
Factory machinery
Industrial control equipment
Electronic instruments and devices
12V DC equipment
LED lighting systems
Embedded systems and power distribution
