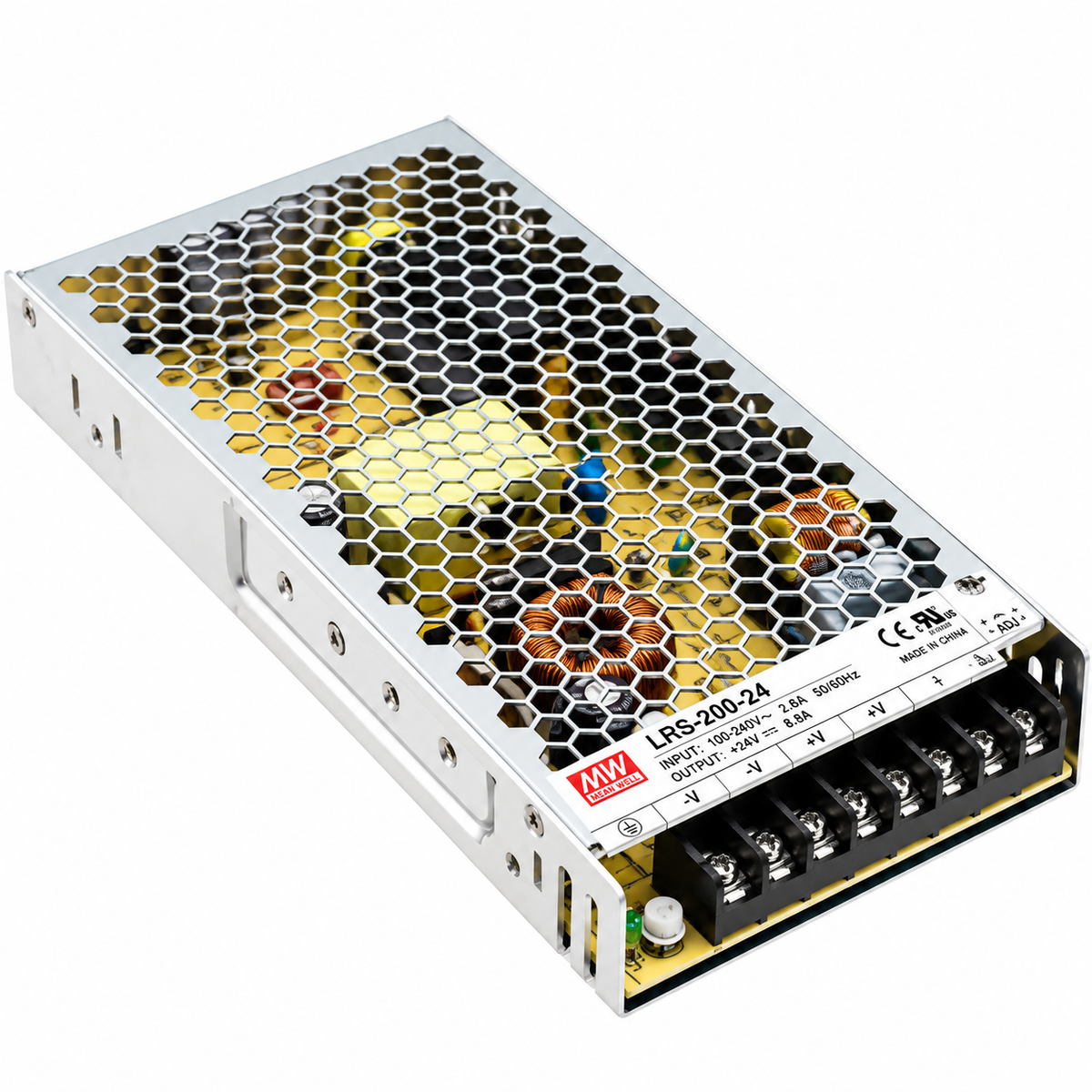

The MEAN WELL LRS-200-24 is an enclosed AC-to-DC switching power supply designed to deliver a stable 24V DC output at 8.8A, with a rated output power of 211.2W. Its low-profile...
Availability: Low stock: 15 left
Couldn't load pickup availability
Free shipping and returns available on all orders!
We ship all US domestic orders within 5-10 business days
We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.
The MEAN WELL LRS-200-24 is an enclosed AC-to-DC switching power supply designed to deliver a stable 24V DC output at 8.8A, with a rated output power of 211.2W. Its low-profile metal enclosure provides effective heat dissipation, making it suitable for industrial automation, electrical control panels, machinery, and electronic equipment. The power supply features a switch-selectable AC input range of 90–132V AC or 180–264V AC and uses natural convection cooling for quiet, fanless operation. Built-in short-circuit, overload, overvoltage, and overtemperature protection helps support reliable operation in industrial environments.
Brand: MEAN WELL
Model: LRS-200-24
Output voltage: 24V DC
Rated output current: 8.8A
Rated output power: 211.2W
Input voltage: 90–132V AC / 180–264V AC, switch selectable
Adjustable output voltage: 21.6–28.8V DC
Enclosed metal-mesh housing
Low-profile 30mm design
Natural convection cooling
Short-circuit, overload, overvoltage, and overtemperature protection
LED power indicator
Typical efficiency: 89.5%
Industrial automation systems
Electrical control panels
Factory machinery
Industrial control equipment
Electronic instruments and devices
24V DC equipment
LED lighting systems
Embedded systems and power distribution
