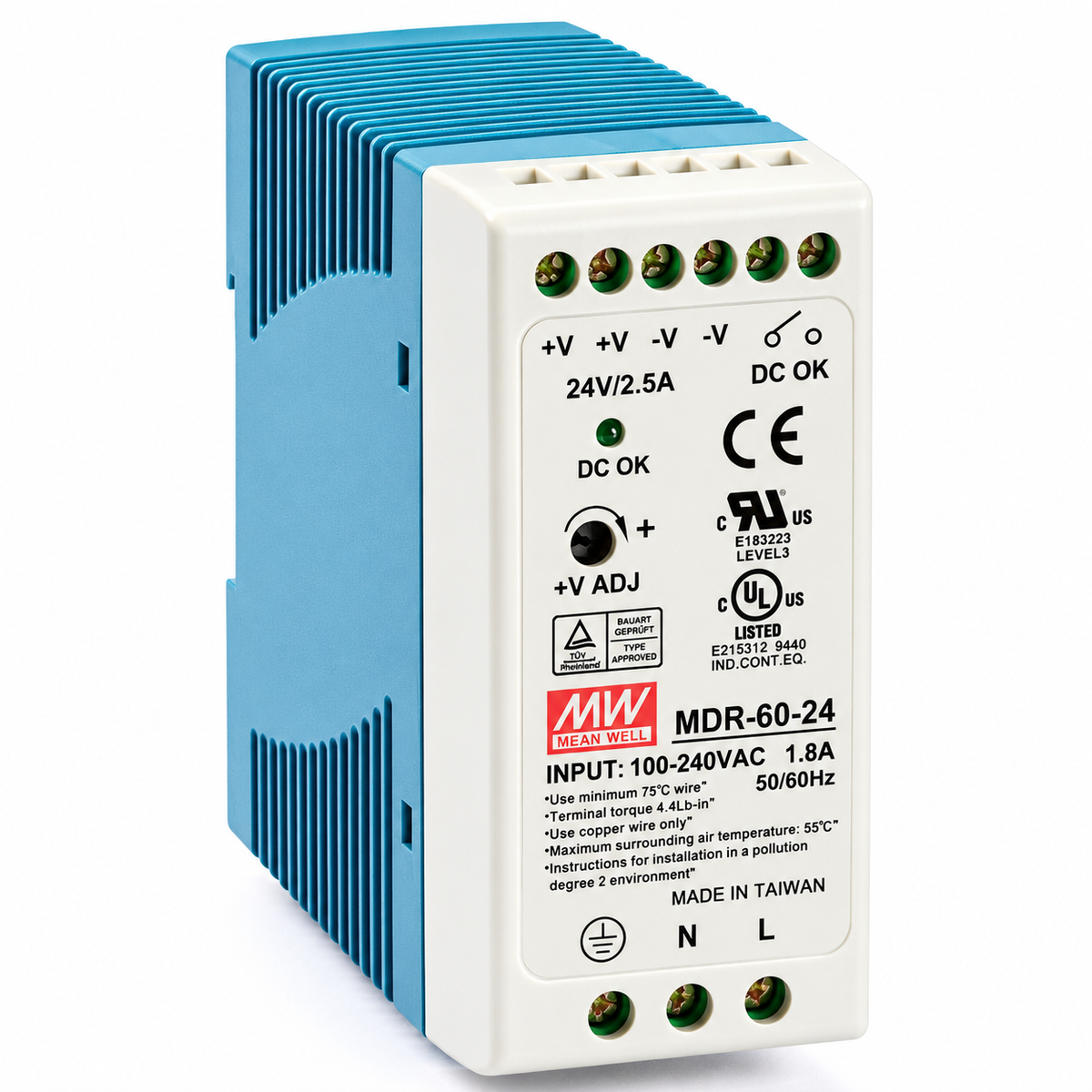

The MEAN WELL MDR-60-24 is a compact AC-to-DC switching power supply designed for DIN-rail mounting in industrial control panels and automation systems. It delivers a regulated 24V DC output at up to 2.5A, providing 60W of rated power for compatible industrial and electronic equipment.
Featuring a universal AC input, natural convection cooling, and an adjustable output voltage, this single-output power supply is suitable for installations where space efficiency and reliable DC power are essential. A built-in DC OK relay contact enables power-status monitoring in compatible control systems.
Brand: MEAN WELL
Model: MDR-60-24
Product Type: DIN-rail switching power supply
Rated Output Power: 60W
Output Voltage: 24V DC
Rated Output Current: 2.5A
Output Voltage Adjustment: 24–30V DC
AC Input Range: 85–264V AC
DC Input Range: 120–370V DC
Input Frequency: 47–63Hz
Typical Efficiency: 88%
Cooling: Natural air convection
Mounting: TS-35/7.5 or TS-35/15 DIN rail
Dimensions: 40 × 90 × 100mm
Protection: Short circuit, overload, and overvoltage
Additional Function: DC OK relay contact
Industrial automation systems
PLC and control panels
Factory machinery
Building automation
Industrial sensors and instrumentation
Security and access control systems
24V DC electronic equipment
Electrical control cabinets
