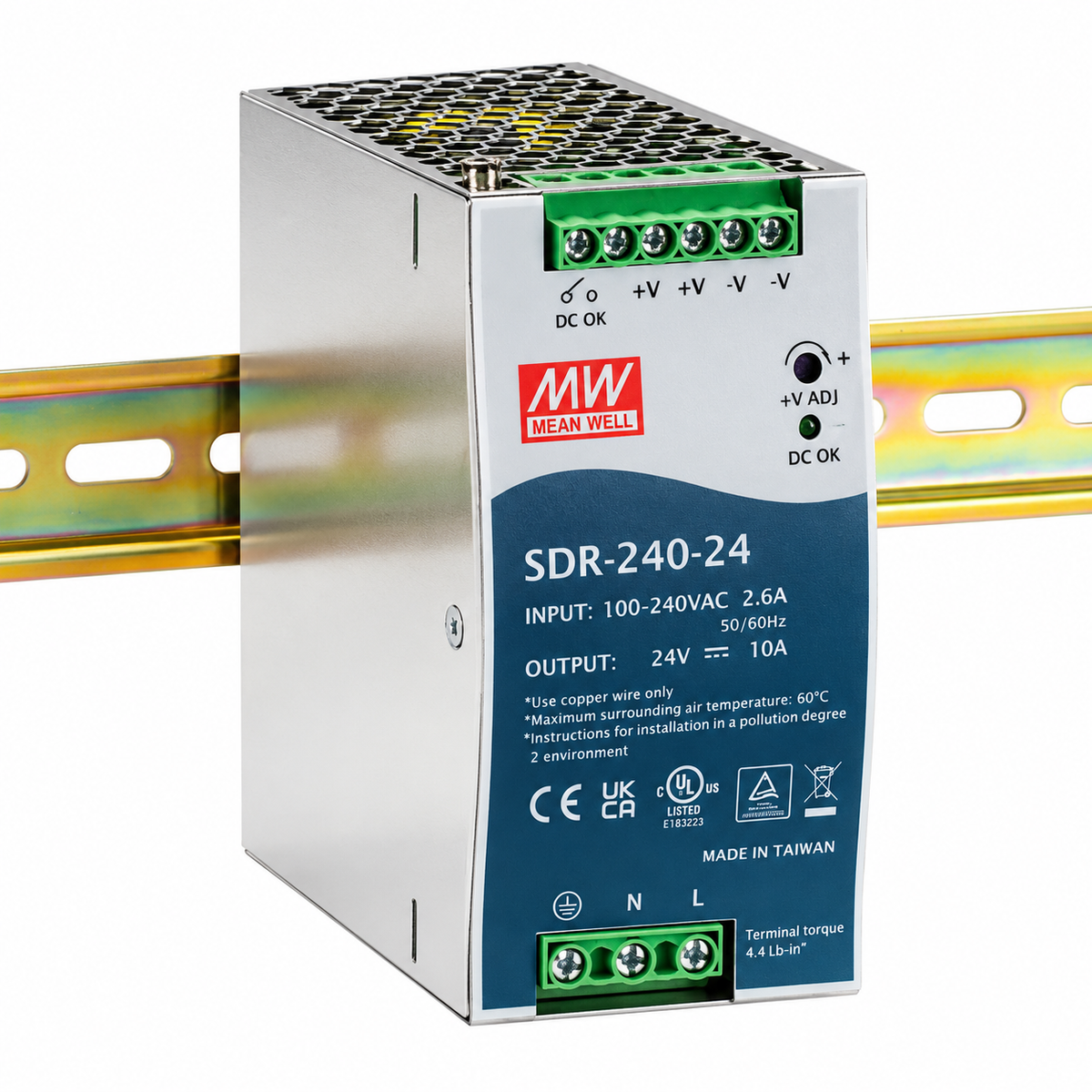

MEAN WELL SDR-240-24

MEAN WELL SDR-240-24

Dhs. 240.00
Dhs. 240.00
Sold out
Tax included.

MEANWELL SDR-240-24 is a 240W high-efficiency DIN rail switching power supply designed for industrial automation and control applications. It provides a regulated 24V DC output at 10A and supports...

Availability: Low stock: 12 left
SKU: OPX-ELC-0063
Vendor: MEAN WELL
Category: Unknown Type

Shipping & Returns

Free shipping and returns available on all orders!

We ship all US domestic orders within 5-10 business days

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

View full product details

MEANWELL SDR-240-24 is a 240W high-efficiency DIN rail switching power supply designed for industrial automation and control applications. It provides a regulated 24V DC output at 10A and supports a wide 88–264V AC input range. The unit features 94% efficiency, active PFC, free-air convection cooling, and built-in protection against short circuit, overload, overvoltage, and overtemperature. It can be mounted on TS-35/7.5 or TS-35/15 DIN rails.

Key Specifications

  • Brand: MEAN WELL
  • Model: SDR-240-24
  • Rated Power: 240W
  • Output Voltage: 24V DC
  • Output Current: 10A
  • Input Voltage: 88–264V AC
  • Efficiency: Up to 94%
  • Peak Power: 360W for 3 seconds
  • Output Adjustment: 24–28V DC
  • Cooling: Free-air convection
  • Mounting: DIN Rail TS-35/7.5 or TS-35/15
  • Protection: Short Circuit, Overload, Over Voltage, Over Temperature
  • Features: Active PFC and built-in DC OK relay contact
  • Dimensions: 63 × 125.2 × 113.5 mm
