The MEAN WELL SE-600-48 is a high-power AC-to-DC switching power supply designed to deliver a regulated 48V DC output at 12.5A, providing 600W of rated power. It is suitable for...
Availability: Low stock: 1 left
Couldn't load pickup availability
Free shipping and returns available on all orders!
We ship all US domestic orders within 5-10 business days
We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

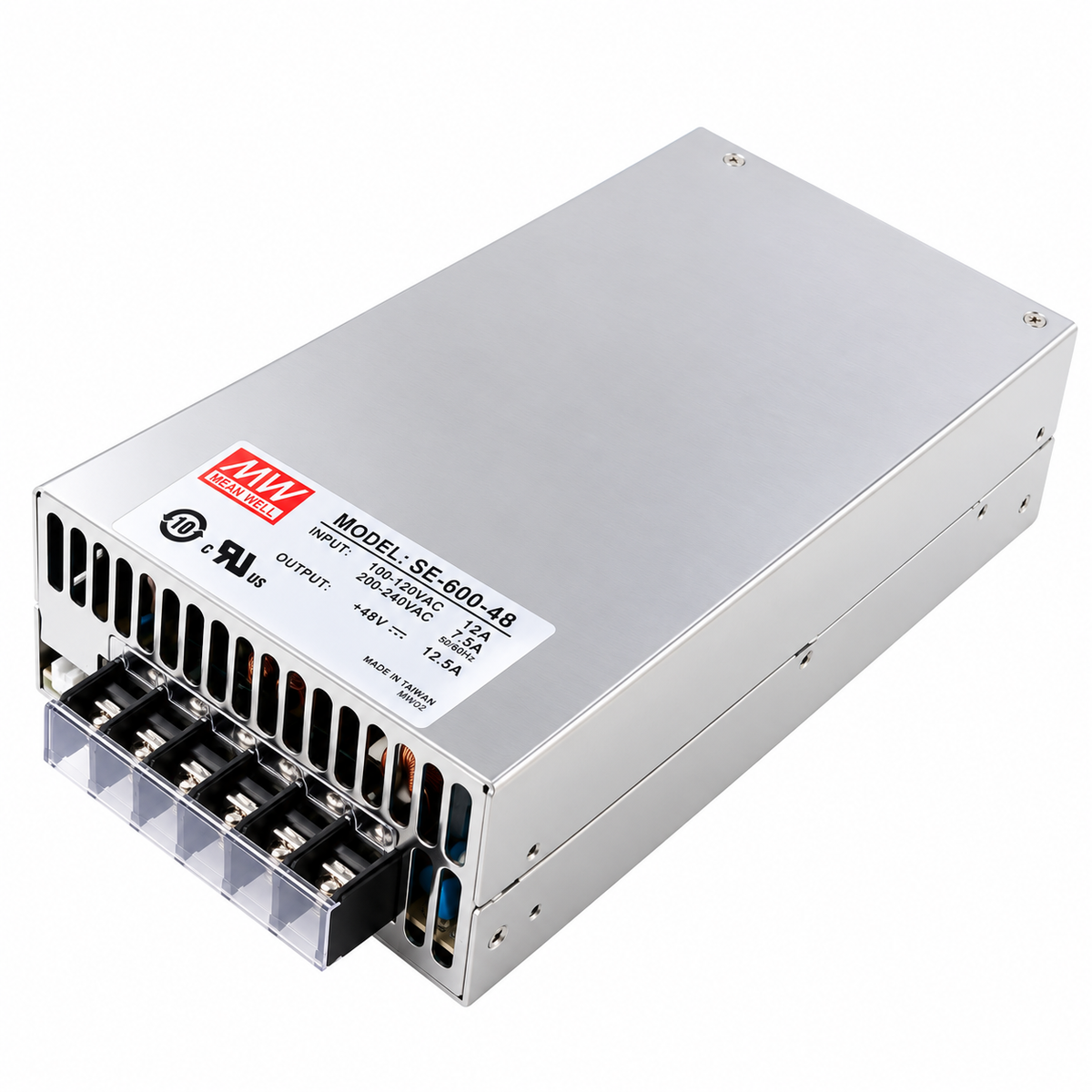

The MEAN WELL SE-600-48 is a high-power AC-to-DC switching power supply designed to deliver a regulated 48V DC output at 12.5A, providing 600W of rated power. It is suitable for industrial equipment, automation systems, telecommunications, and other applications requiring a reliable high-power DC supply. Featuring an enclosed metal housing, selectable AC input voltage, adjustable output voltage, and built-in cooling fan, this single-output power supply supports continuous operation in compatible industrial environments. Integrated protection functions help safeguard the power supply and connected equipment.
Brand: MEAN WELL
Model: SE-600-48
Product Type: Enclosed switching power supply
Rated Output Power: 600W
Output Voltage: 48V DC
Rated Output Current: 12.5A
Output Voltage Adjustment: 43–56V DC
AC Input Range: 90–132V AC / 180–264V AC, selectable by switch
Input Frequency: 47–63Hz
Typical Efficiency: 88%
Cooling: Built-in DC fan
Mounting: Chassis mounting
Dimensions: 247 × 127 × 63.5mm
Protection: Short circuit, overload, overvoltage, and overtemperature
Additional Feature: Remote sensing function
Industrial automation equipment
Telecommunications systems
Industrial control panels
High-power electronic equipment
LED display and lighting systems
Testing and measurement equipment
Industrial machinery and DC power systems
