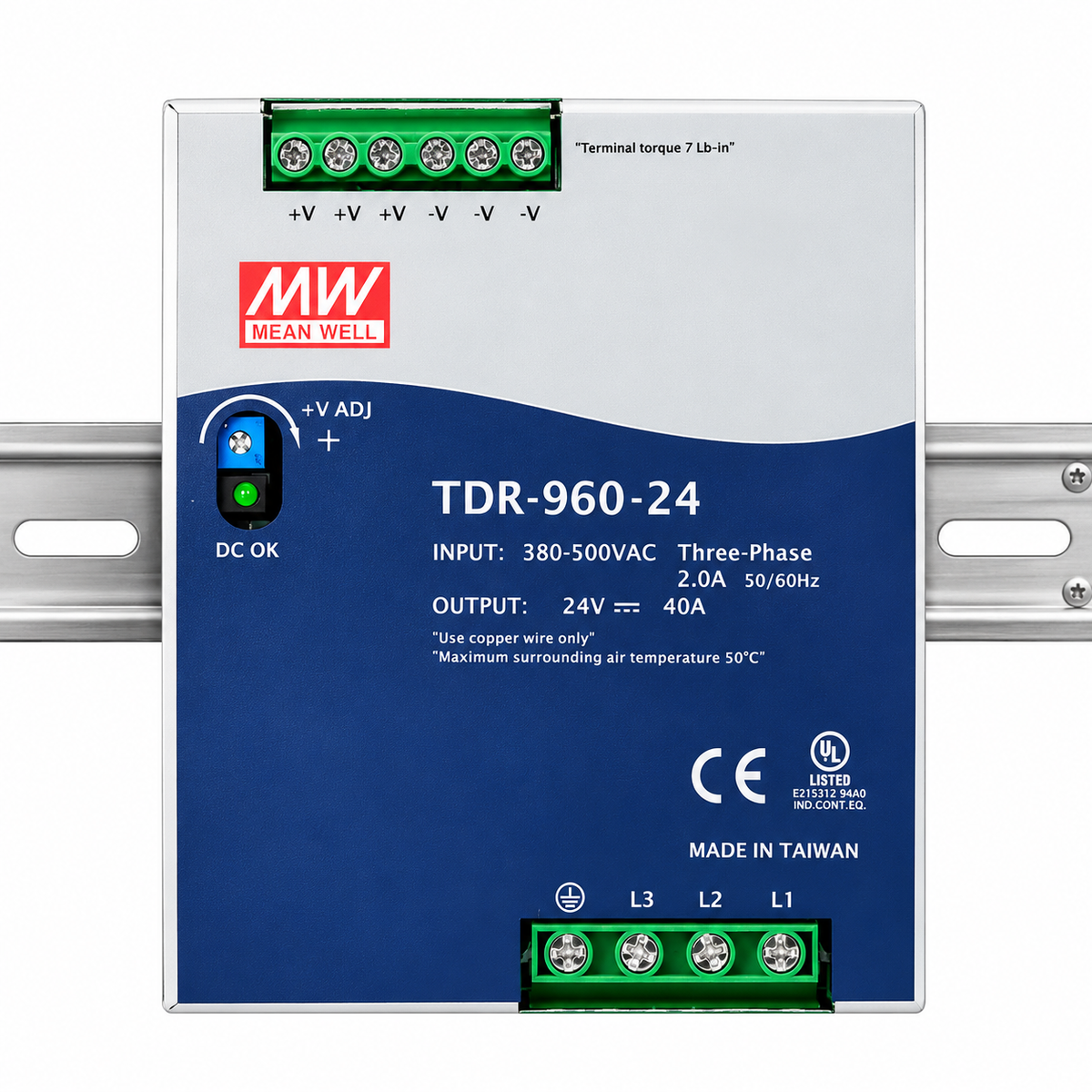

MEAN WELL TDR-960-24 24V 40A 960W Three-Phase DIN Rail Power SupplyThe MEAN WELL TDR-960-24 is a high-power industrial switching power supply designed to deliver a stable 24V DC output at 40A, with a rated power of 960W. Its slim DIN rail mounting design makes it suitable for industrial automation, electrical control cabinets, factory machinery, and applications requiring reliable, high-current DC power.
Featuring a three-phase AC input range of 340–550V AC, with dual-phase operation also possible, the TDR-960-24 offers high efficiency and active power factor correction. It includes short-circuit, overload, overvoltage, and overtemperature protection, along with a built-in DC OK relay contact for remote status monitoring.
Brand: MEAN WELL
Model: TDR-960-24
Output voltage: 24V DC
Rated output current: 40A
Rated output power: 960W
Input voltage: Three-phase 340–550V AC
DC input range: 480–780V DC
Adjustable output voltage: 24–28V DC
DIN rail mounting: TS-35/7.5 or TS-35/15
Active power factor correction (PFC)
Typical efficiency: 94%
Natural convection cooling
Short-circuit, overload, overvoltage, and overtemperature protection
Built-in DC OK relay contact
Current sharing capability for parallel operation
Industrial automation systems
Electrical control cabinets
PLC and control systems
Factory machinery
Industrial process control
Manufacturing equipment
High-current 24V DC power distribution
Industrial monitoring and instrumentation
