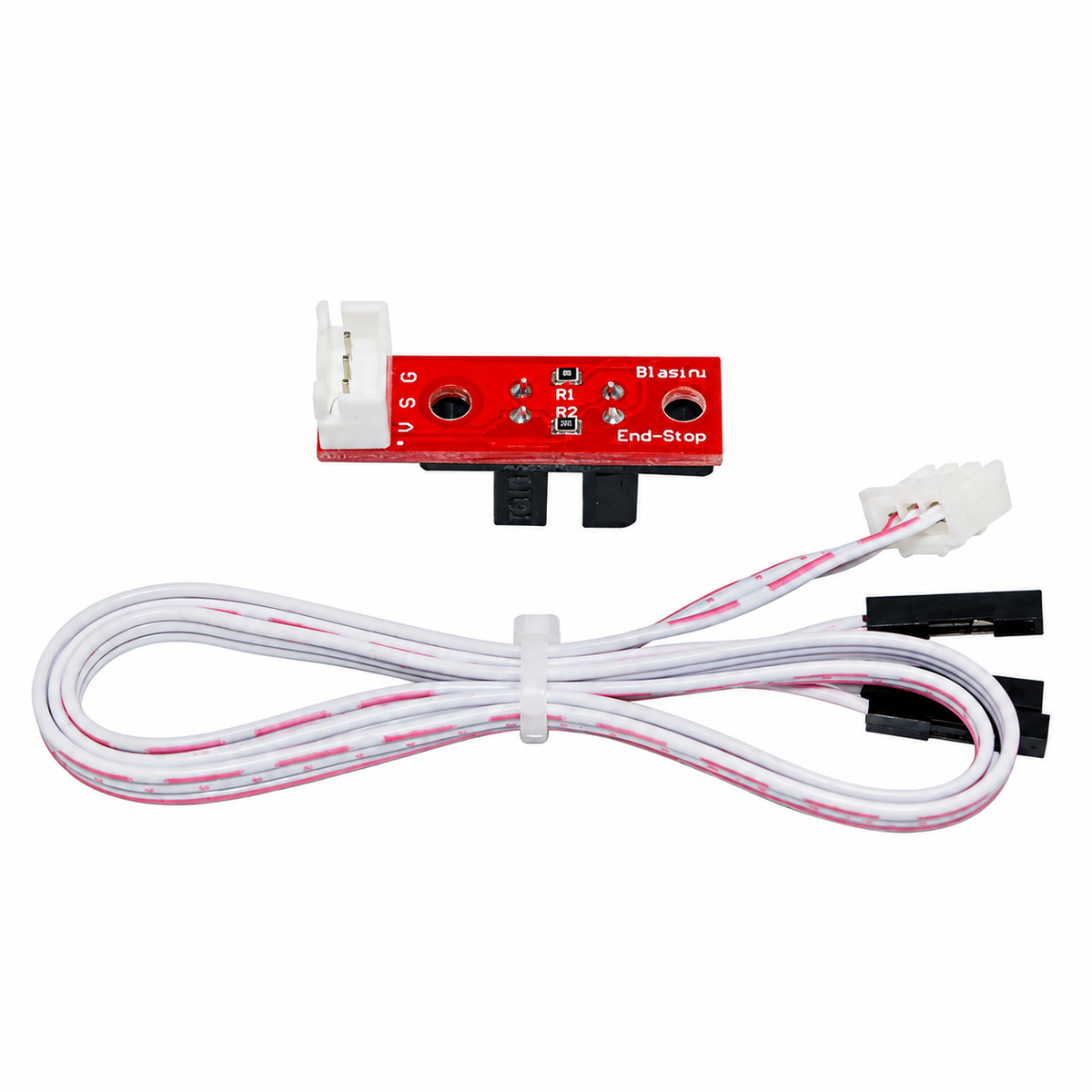

The Optical Endstop Limit Switch is an electronic positioning sensor designed for 3D printers, CNC machines, and automated motion-control systems. It uses an optical sensing mechanism to detect the presence or interruption of light, providing accurate and reliable position detection without relying on mechanical contact. This module helps identify the end positions of moving components, allowing motion-control systems to establish reference points and prevent movement beyond configured travel limits. It is suitable for 3D printer axis positioning, CNC equipment, robotics, and other automation applications requiring dependable optical limit detection.

Key Features

• Optical Detection: Uses light-based sensing for non-contact position detection.
• Accurate Position Sensing: Helps detect axis end positions and reference points.
• Contactless Operation: Reduces mechanical wear associated with conventional contact switches.
• 3D Printer Compatibility: Designed for use in compatible 3D printer endstop systems.
• Motion Control: Suitable for CNC machines, robotics, and automated positioning equipment.
• Compact Design: Easy to integrate into compatible electronic control systems.

Applications

• 3D printer X, Y, and Z axis endstop detection
• CNC machine positioning systems
• Robotics and automated motion control
• Electronic limit detection
• Homing and reference-point positioning
• DIY automation and embedded projects
