The RV2-6 Blue Ring Insulated Terminal Connector is designed to provide secure electrical connections between wires and screw or bolt terminals. Suitable for wires with a cross-sectional area of 1.5–2.5...
Availability: Low stock: 20 left
Couldn't load pickup availability
Free shipping and returns available on all orders!
We ship all US domestic orders within 5-10 business days
We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

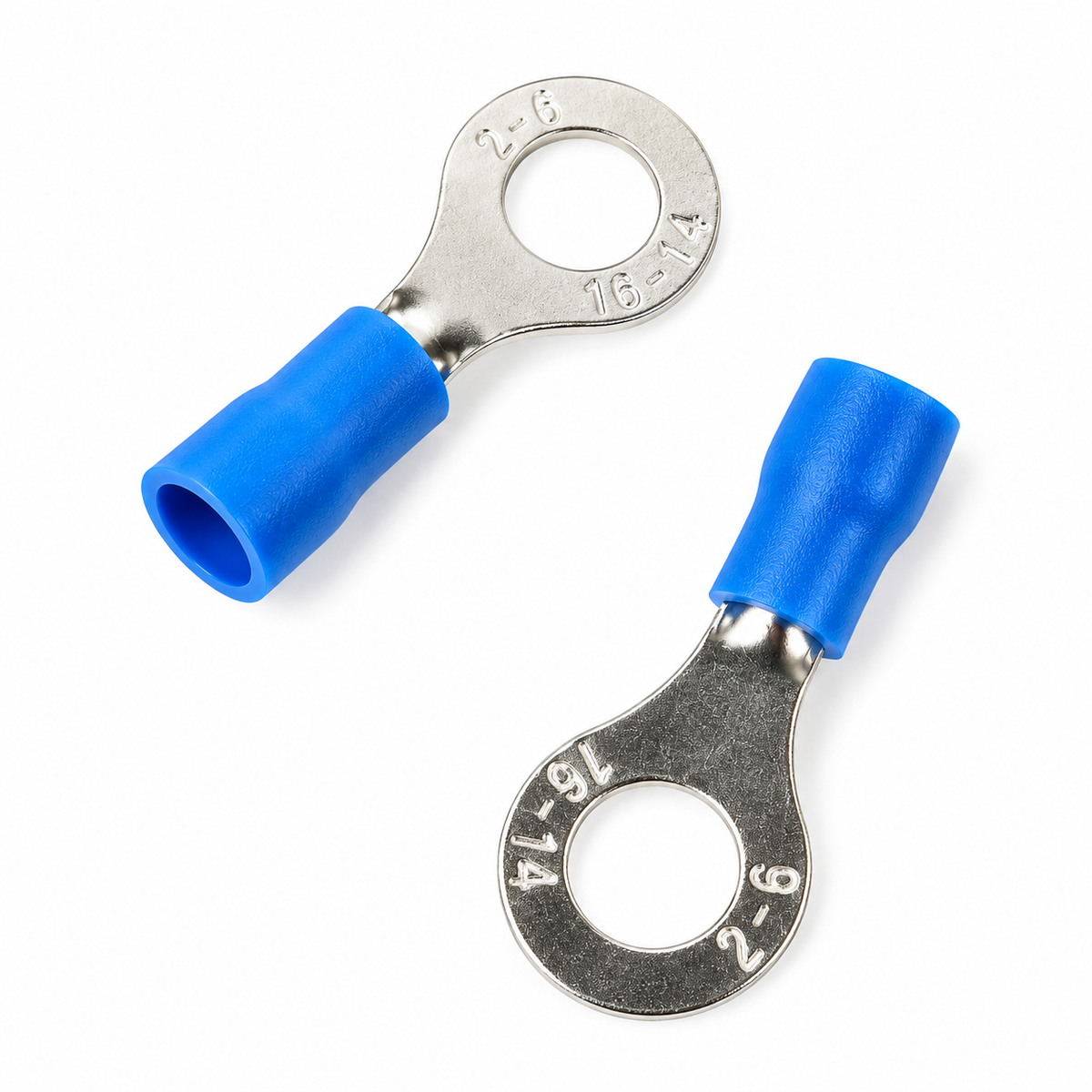

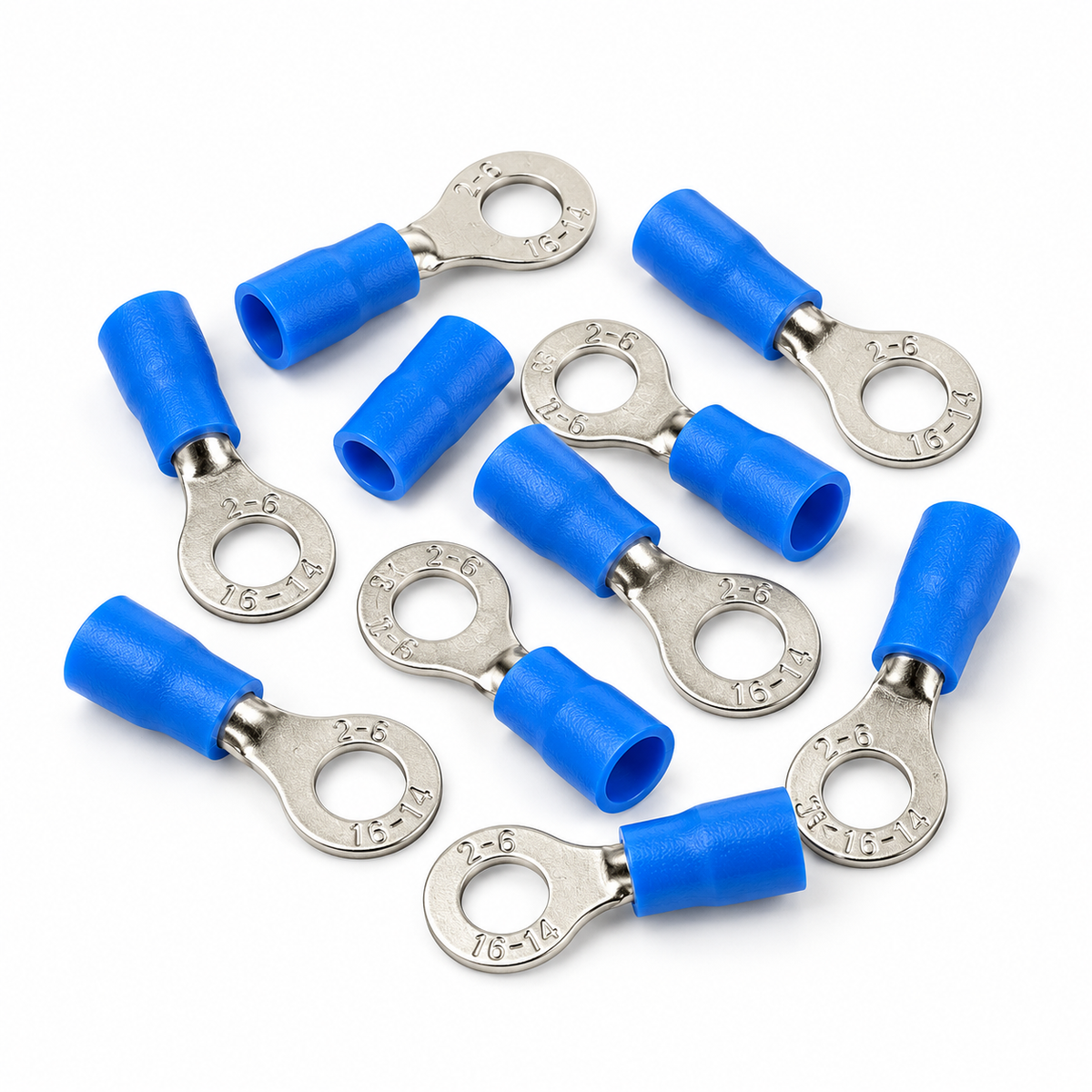

The RV2-6 Blue Ring Insulated Terminal Connector is designed to provide secure electrical connections between wires and screw or bolt terminals. Suitable for wires with a cross-sectional area of 1.5–2.5 mm² (16–14 AWG), each terminal features a closed ring for reliable fastening and blue insulation to help reduce the risk of accidental short circuits.These crimp terminals are suitable for electrical wiring, industrial control panels, automotive wiring, and general electrical maintenance. The ring design helps keep the connection securely fastened, while the crimp barrel allows attachment using a compatible crimping tool. This pack contains 50 pieces.
Product Type: Insulated ring crimp terminal
Model: RV2-6
Pack Quantity: 10 pieces
Colour: Blue
Compatible Wire Size: 1.5–2.5 mm²
Wire Gauge: 16–14 AWG
Ring Hole Diameter: Approximately 6.4–6.5 mm (M6 fastening)
Terminal Material: Copper, typically tin-plated
Insulation Material: PVC
Maximum Current: Up to 27A, depending on installation and operating conditions
Installation: Crimp connection using a suitable crimping tool
Industrial electrical wiring
Control panel assembly
Power supply connections
Automotive and vehicle wiring
Electrical equipment maintenance
Machinery and automation systems
DIY electrical projects
