The SEMIKRON SKKD 100/16 is a high-power semiconductor rectifier module designed for industrial power conversion and electrical control applications. It features a dual-diode configuration with a rated average forward current...
Availability: Low stock: 20 left
Couldn't load pickup availability
Free shipping and returns available on all orders!
We ship all US domestic orders within 5-10 business days
We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

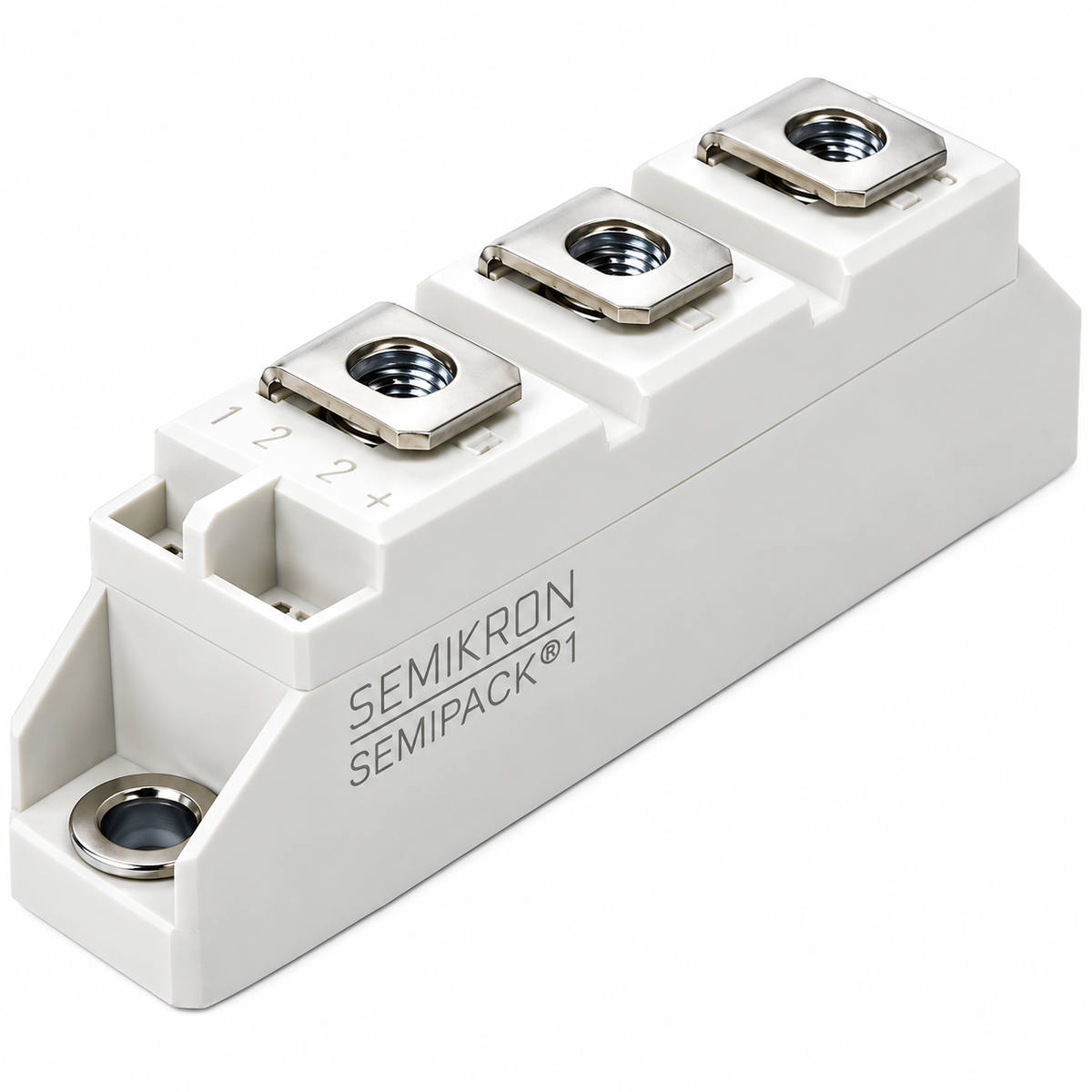

The SEMIKRON SKKD 100/16 is a high-power semiconductor rectifier module designed for industrial power conversion and electrical control applications. It features a dual-diode configuration with a rated average forward current of 100A and a repetitive peak reverse voltage of 1600V. Its SEMIPACK 1 package provides an electrically isolated baseplate for efficient heat transfer when mounted correctly to a suitable heatsink. Designed for demanding power electronics applications, this module is suitable for rectification in industrial converters, AC motor controllers, and DC motor field supply systems.
Brand: SEMIKRON / SEMIKRON Danfoss
Model: SKKD 100/16
Part Number: 230B1629
Product Type: Dual diode rectifier module
Average Forward Current: 100A
Repetitive Peak Reverse Voltage: 1600V
Surge Current: Up to 2000A under specified conditions
Package: SEMIPACK 1
Dimensions: Approximately 93 × 20 × 30mm
Mounting: Screw-mounted to a suitable heatsink
Operating Junction Temperature: −40°C to +125°C
Industrial rectifier circuits
AC/AC power converters
AC motor controller line rectifiers
DC motor field power supplies
Industrial power conversion equipment
High-power electrical control systems
Power electronics and industrial machinery
