The XL6009 DC-DC Booster Regulator Module is an adjustable step-up voltage converter designed to increase a lower DC input voltage to a higher DC output voltage. Featuring...
Availability: Low stock: 10 left
Couldn't load pickup availability
Free shipping and returns available on all orders!
We ship all US domestic orders within 5-10 business days
We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

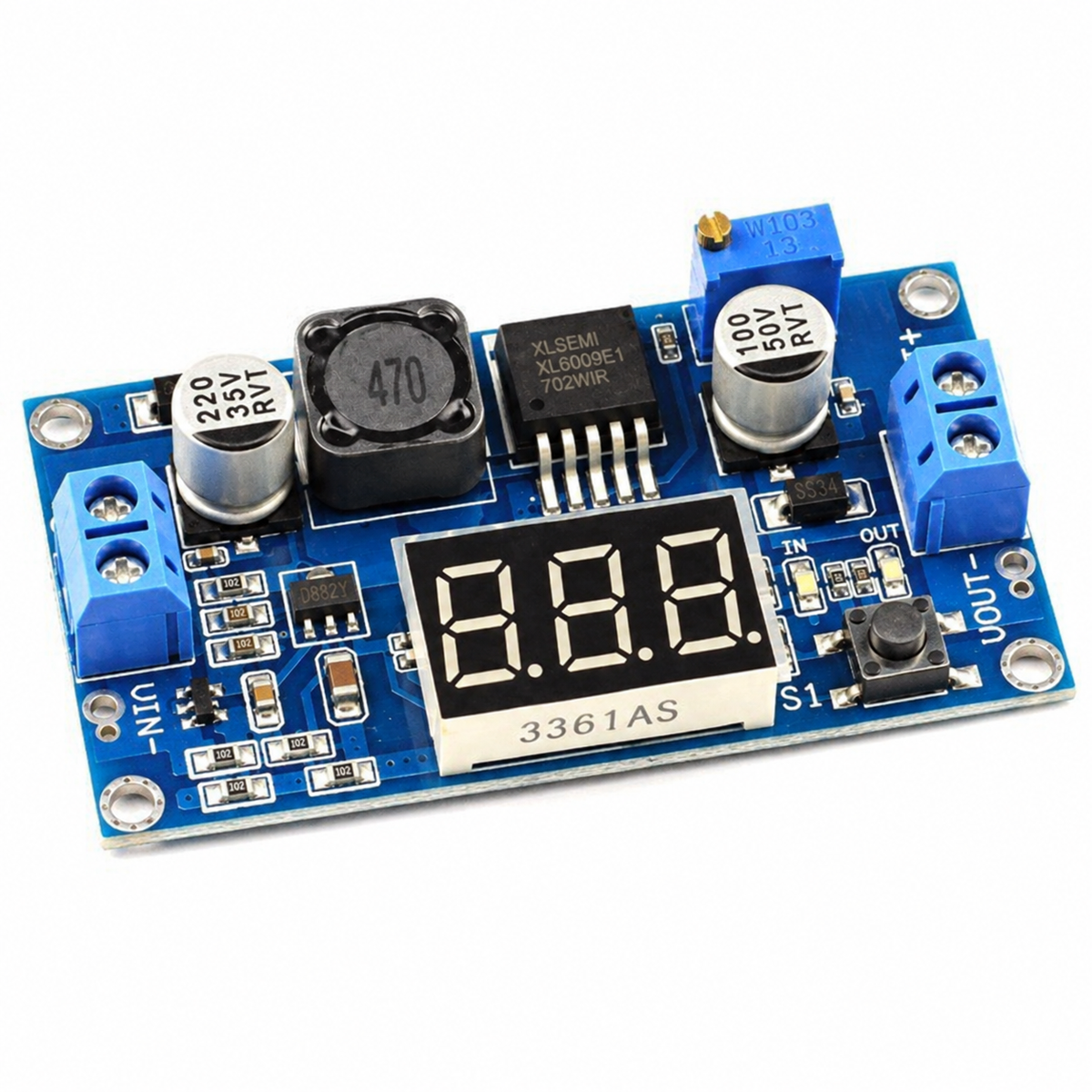

The XL6009 DC-DC Booster Regulator Module is an adjustable step-up voltage converter designed to increase a lower DC input voltage to a higher DC output voltage. Featuring an integrated digital voltage display, this module allows users to monitor voltage during operation, making it suitable for power supply projects, electronics prototyping, and DIY applications.
Based on the XL6009 switching regulator, the module supports an input voltage range of 3V to 32V DC and an adjustable output range of 5V to 35V DC. The built-in adjustment potentiometer allows users to set the required output voltage for compatible electronic devices and circuits.
XL6009 DC-DC boost converter
Input voltage range: 3V–32V DC
Adjustable output voltage: 5V–35V DC
Integrated digital voltage display
Adjustable output voltage using an onboard potentiometer
Switching frequency of approximately 400kHz
Maximum switch current rating of up to 4A, depending on operating conditions
Compact design for electronics projects
Suitable for DIY power supply and voltage conversion applications
Adjustable DC power supplies
Arduino and electronics projects
Battery-powered equipment
LED lighting projects
DIY electronics and prototyping
Embedded systems and voltage conversion
Electronic circuit testing
