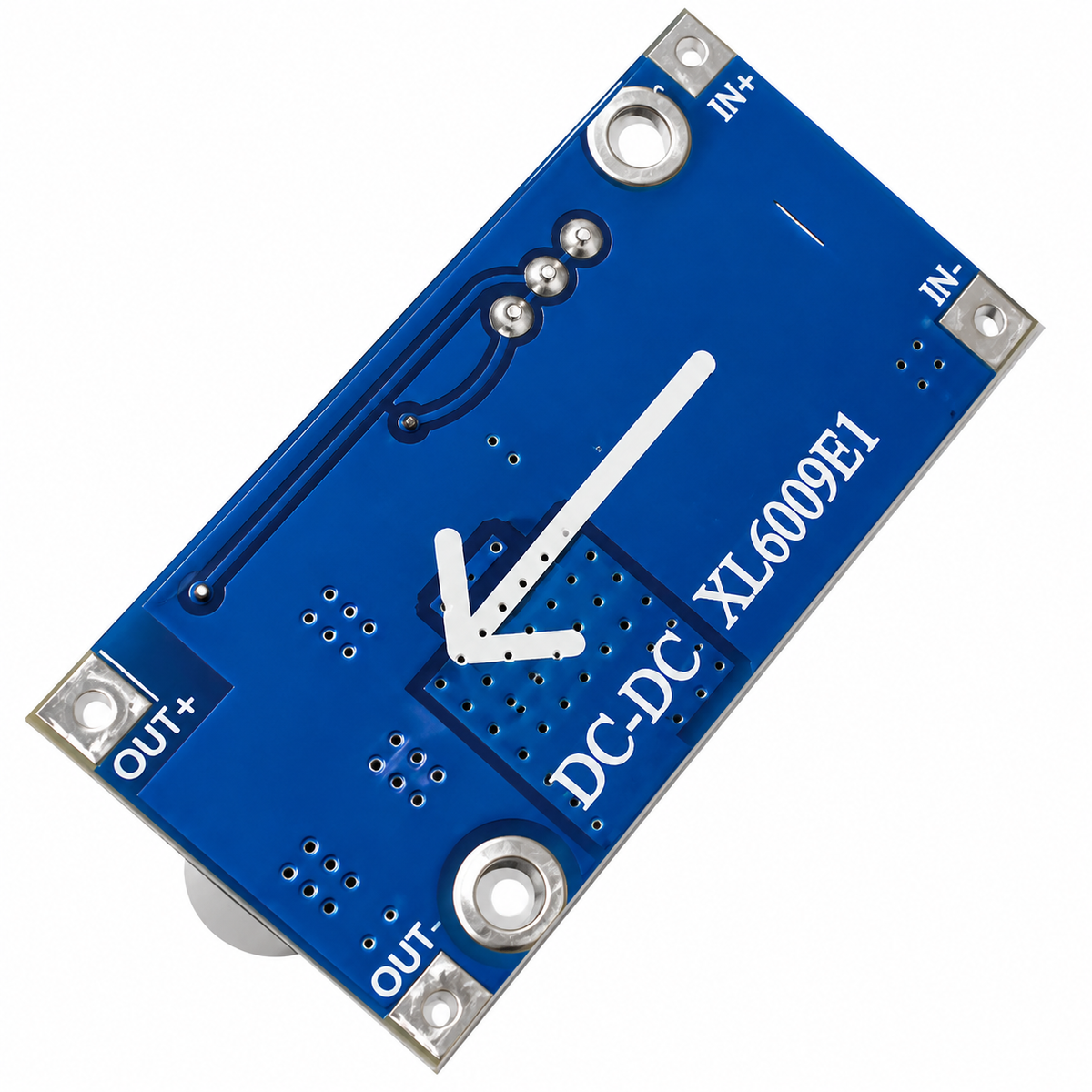

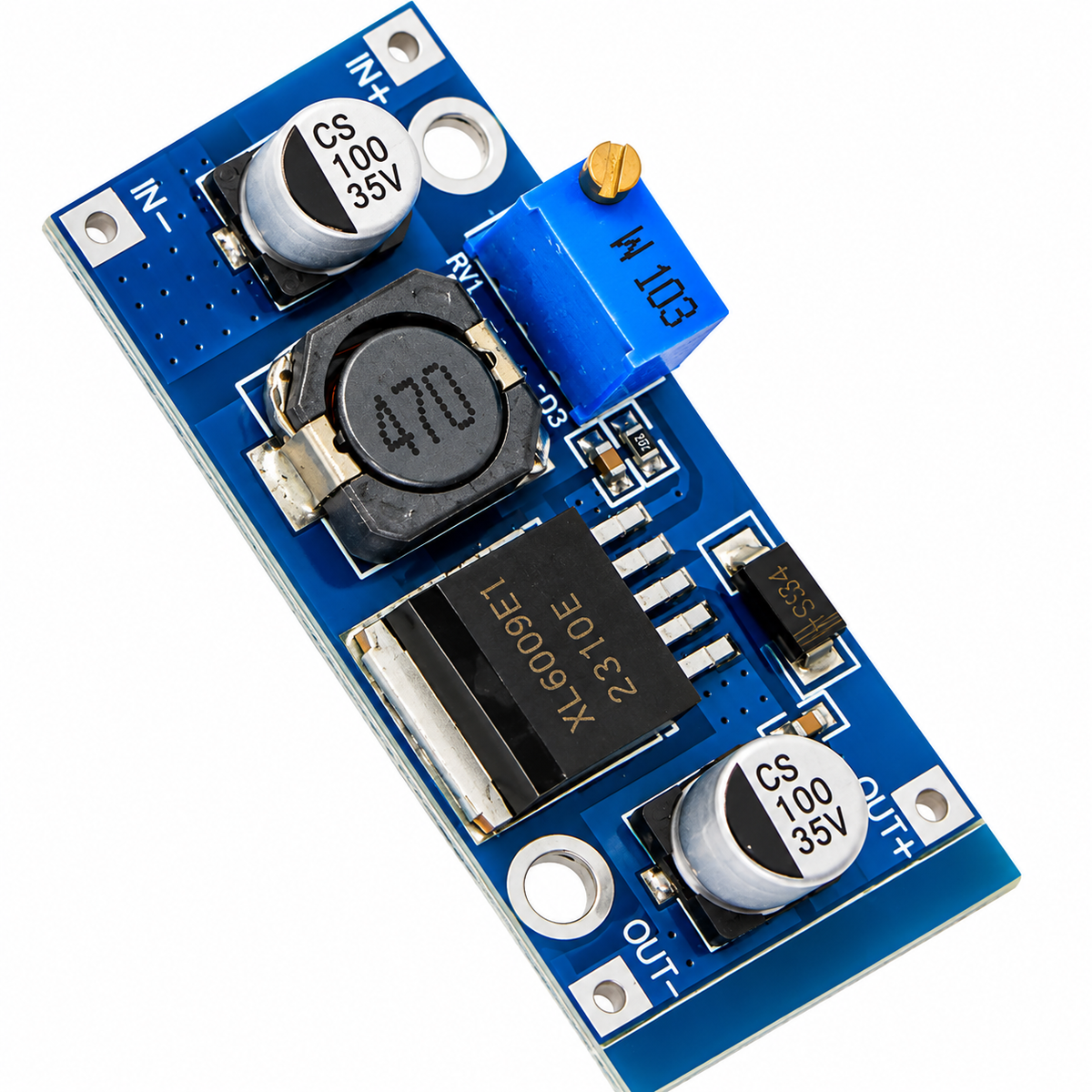

The XL6009E1 DC-DC Boost Converter Module is an adjustable switching power supply designed to increase a lower DC input voltage to a higher DC output voltage. Based on the XL6009E1 switching regulator IC, it features an onboard potentiometer for adjusting the output voltage, making it suitable for electronic projects requiring flexible DC power conversion.With a wide input voltage range and high-frequency switching operation, this module is ideal for DIY electronics, battery-powered devices, Arduino projects, LED circuits, and other low-voltage applications. Its compact design and simple input/output terminals make integration.XL6009E1 DC-DC Step-Up Power Supply Module – Input 3V-32V, Output 5V-35V
Model: XL6009E1
Product Type: DC-DC step-up boost converter
Input Voltage: 3–32V DC
Adjustable Output Voltage: Typically 5–35V DC, depending on the module version
Maximum Switch Current: 4A
Switching Frequency: 400kHz
Conversion Efficiency: Up to 94% under suitable conditions
Output Adjustment: Onboard potentiometer
Connection Terminals: IN+, IN−, OUT+, OUT−
Dimensions: Approximately 43 × 21 × 14mm for common board versions
Protection: Check the specific module version for built-in protection features
Arduino and microcontroller projects
Battery-powered electronics
DC voltage boosting
LED and sensor circuits
Portable electronic devices
DIY power supply projects
Robotics and embedded systems
Electronic prototyping and testing
